Určení: Kancelář/domácnost
Formát základní desky: mITX
Herní: NE

Socket: LGA 1150 socket
Výrobce čipsetu: Intel
Čipset: Intel H81 Chipset
Počet CPU socketů: Single socket

Typ paměti: DDR3
Počet paměťových slotů: 2
Podpora ECC: NE

EXPANSION SLOT 1 x PCIe 2.0 x1
1 x PCIe 2.0 x16 Slot (x16 mode)

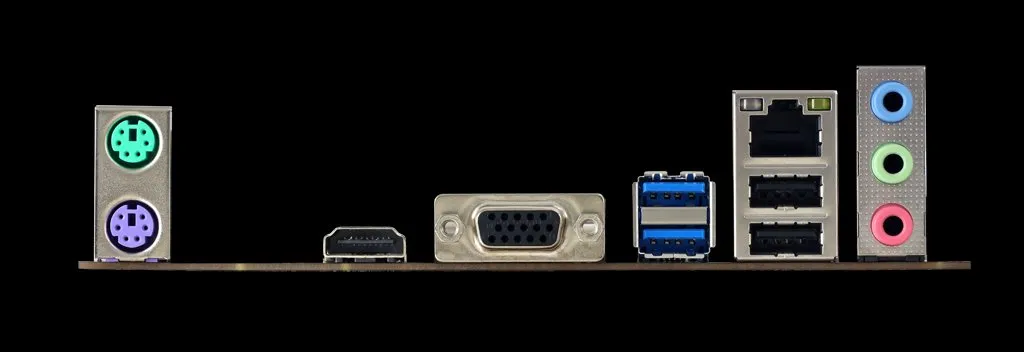

REAR I/O 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA Port
1 x HDMI Port
2 x USB 3.0 Ports
2 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack

INTERNAL I/O 2 x SATA II (3Gb/s)
2 x SATA III (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION Micro ATX Form Factor Dimension: 17cm x 19cm ( W x L )
OS SUPPORT Supports Windows 7 / 8 / 8.1 /10
?Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
