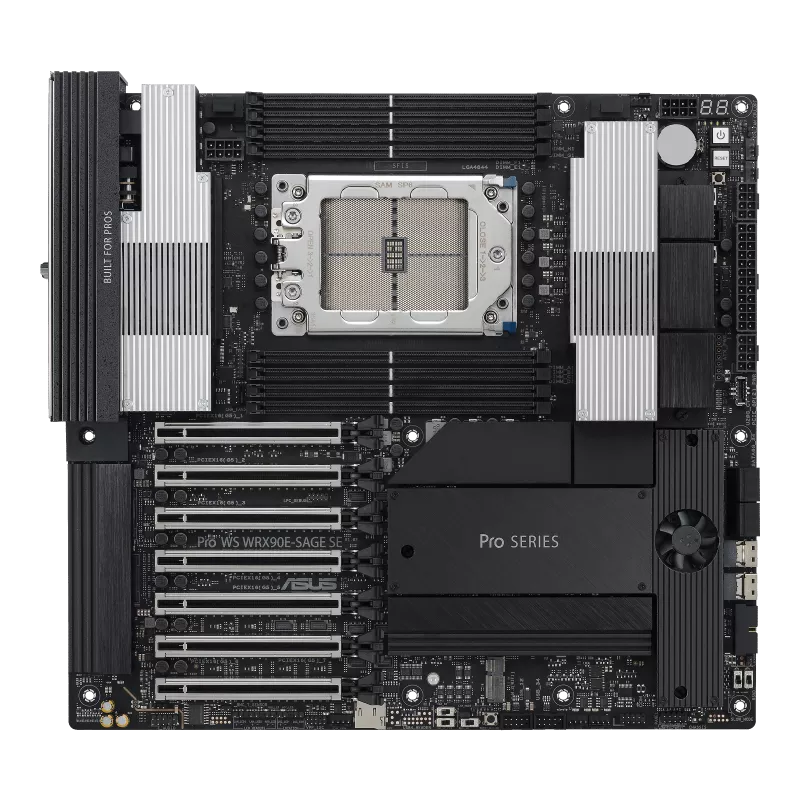

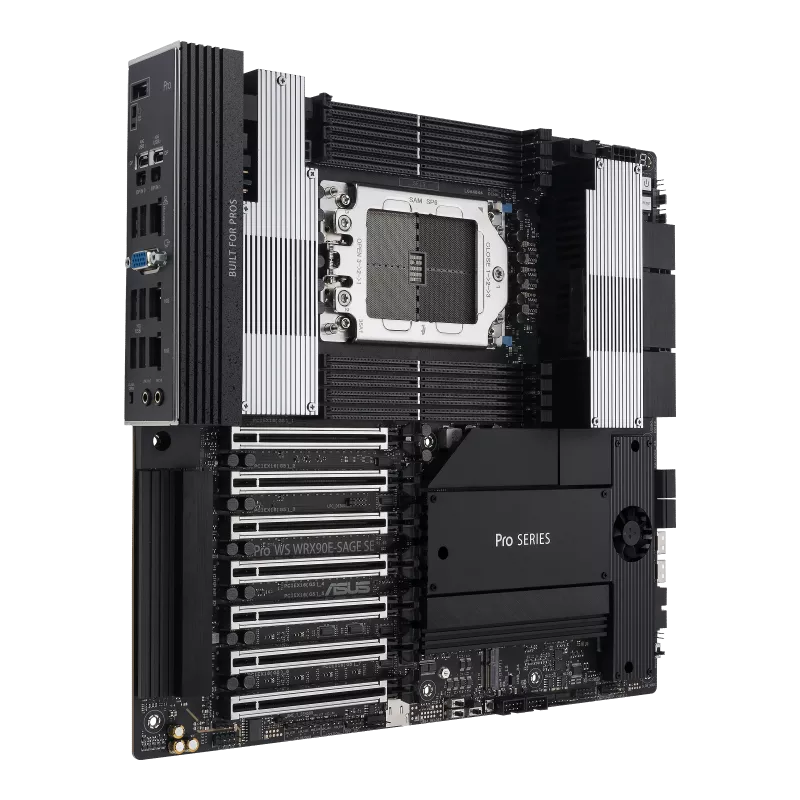

Popis | CPU AMD Socket sTR5 WRX90 for RYZEN™ Threadripper™ PRO 7000 WX-Series Processors* Chipset AMD WRX90 Chipset Memory 8 x DIMM slots, DDR5, ECC Registered Memory* 8-Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™)

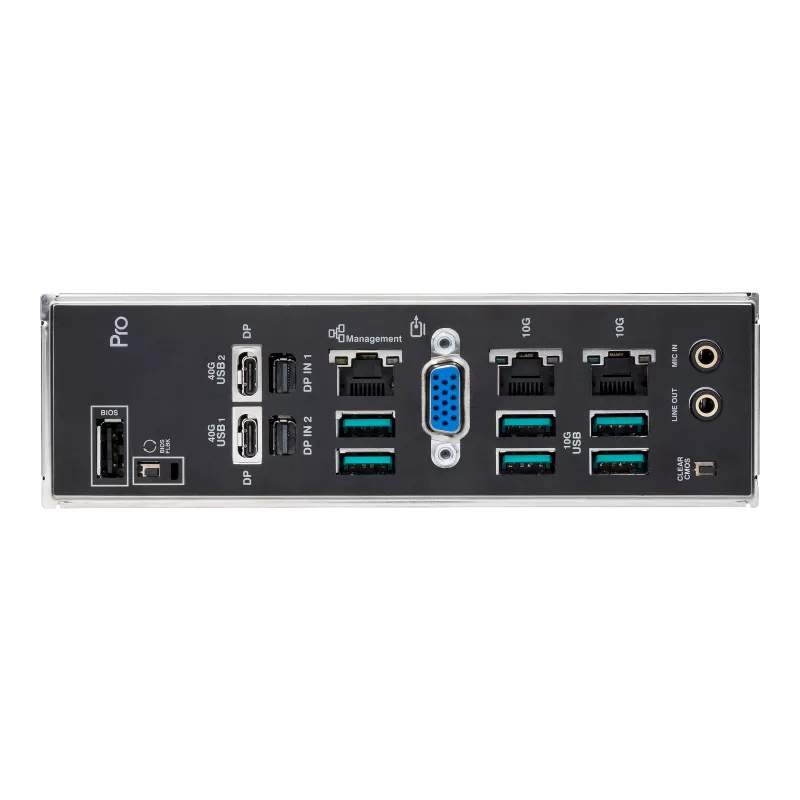

Graphics 1 x VGA port from AST2600 2 x USB 40Gbps (USB4®) ports support USB Type-C® display outputs* 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode) AMD RYZEN™ Threadripper™ PRO 7000 WX-Series Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD WRX90 Chipset SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports Ethernet 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 1 x Intel® dual 10Gb Ethernet ASUS LANGuard Wireless & Bluetooth® "M.2 slot only (Key E, PCIe)* USB Rear USB (Total 9 ports) 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Stránky o produktu: https://www.asus.com/motherboards-components/motherboards/workstation |
